Filter presses

Design, production, and sale of filter presses

We are among the leading producers of filter presses for the processing of suspensions. The equipment is used to filter liquids and dewater sludge. The advantage of ENVITES filter presses is high dewatering efficiency, filtrate purity and sludge dry matter. Other advantages include low energy requirements for operation, flexible adaptability to the filtered medium, low consumption of auxiliary chemicals, and the possibility of washing the filter cake.

We will design and produce a custom-made ENVITES filter press for you. As needed by the process, we can equip the filter presses with a whole range of additional equipment. After delivery of the device, we will hand over the operating documentation to you and train the operator and the service personnel. We provide warranty as well as post-warranty service and technical assistance.

We produce filter presses

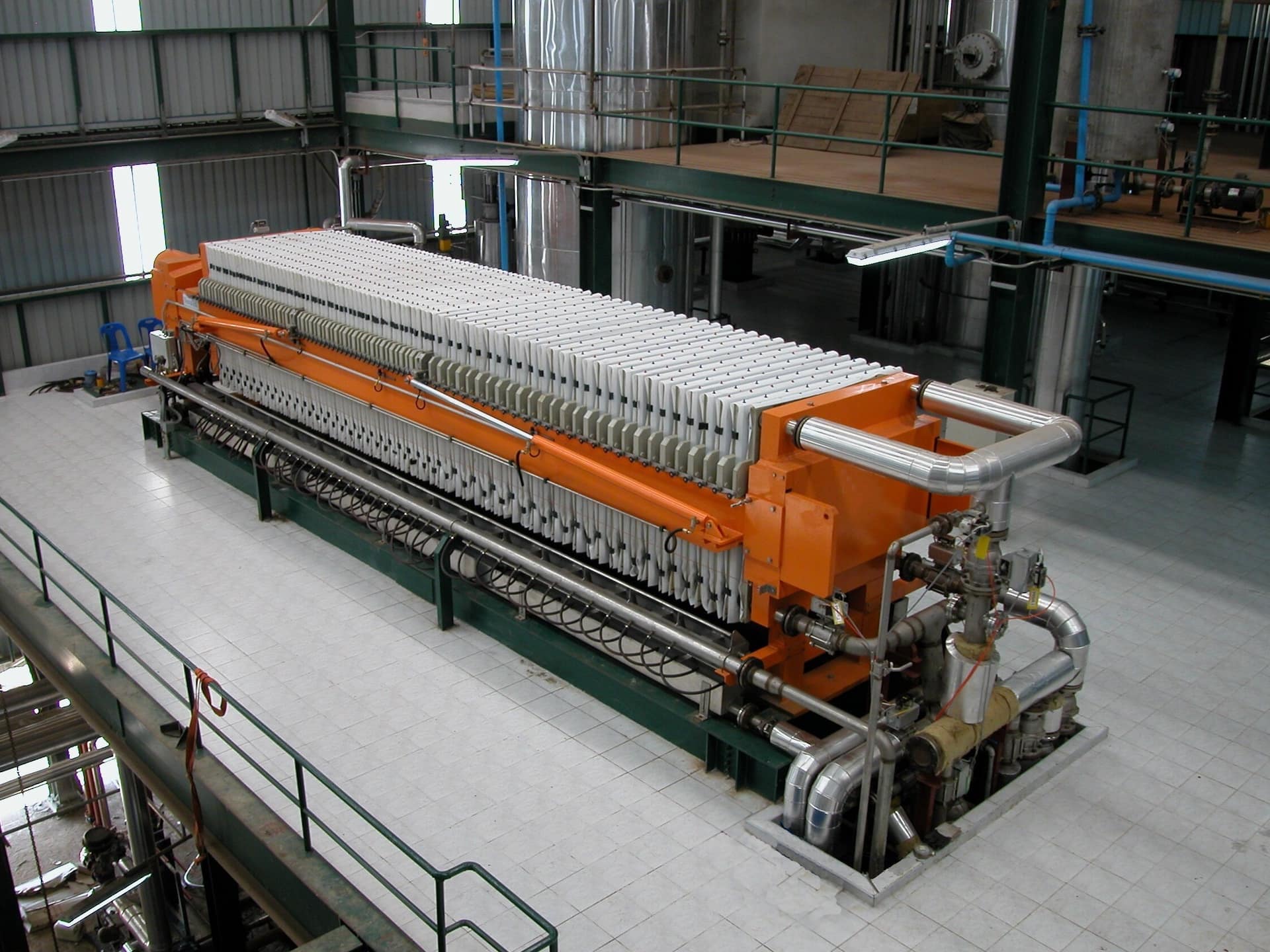

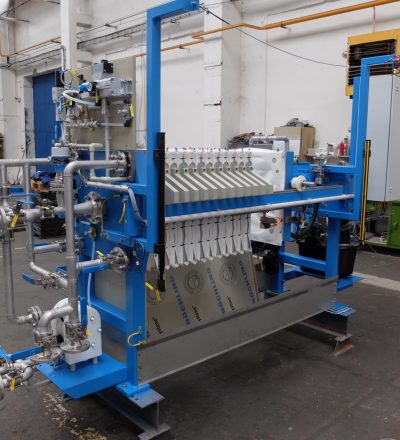

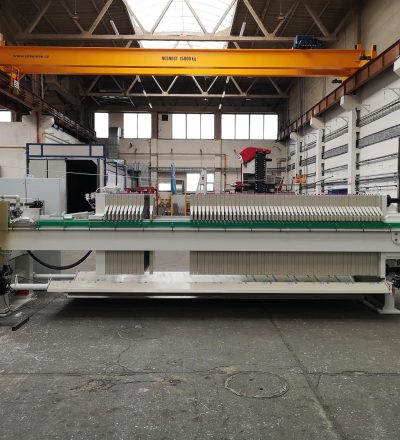

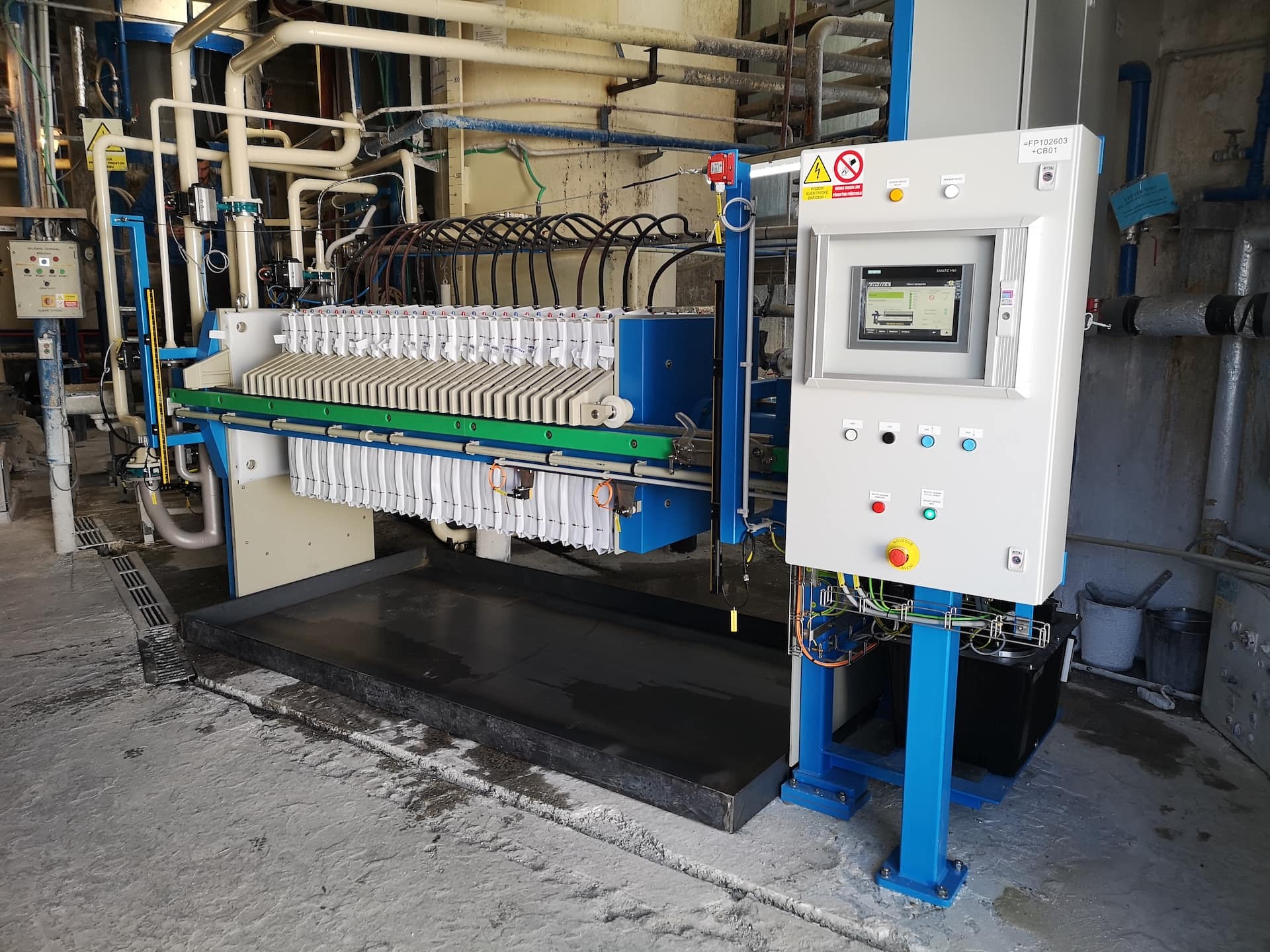

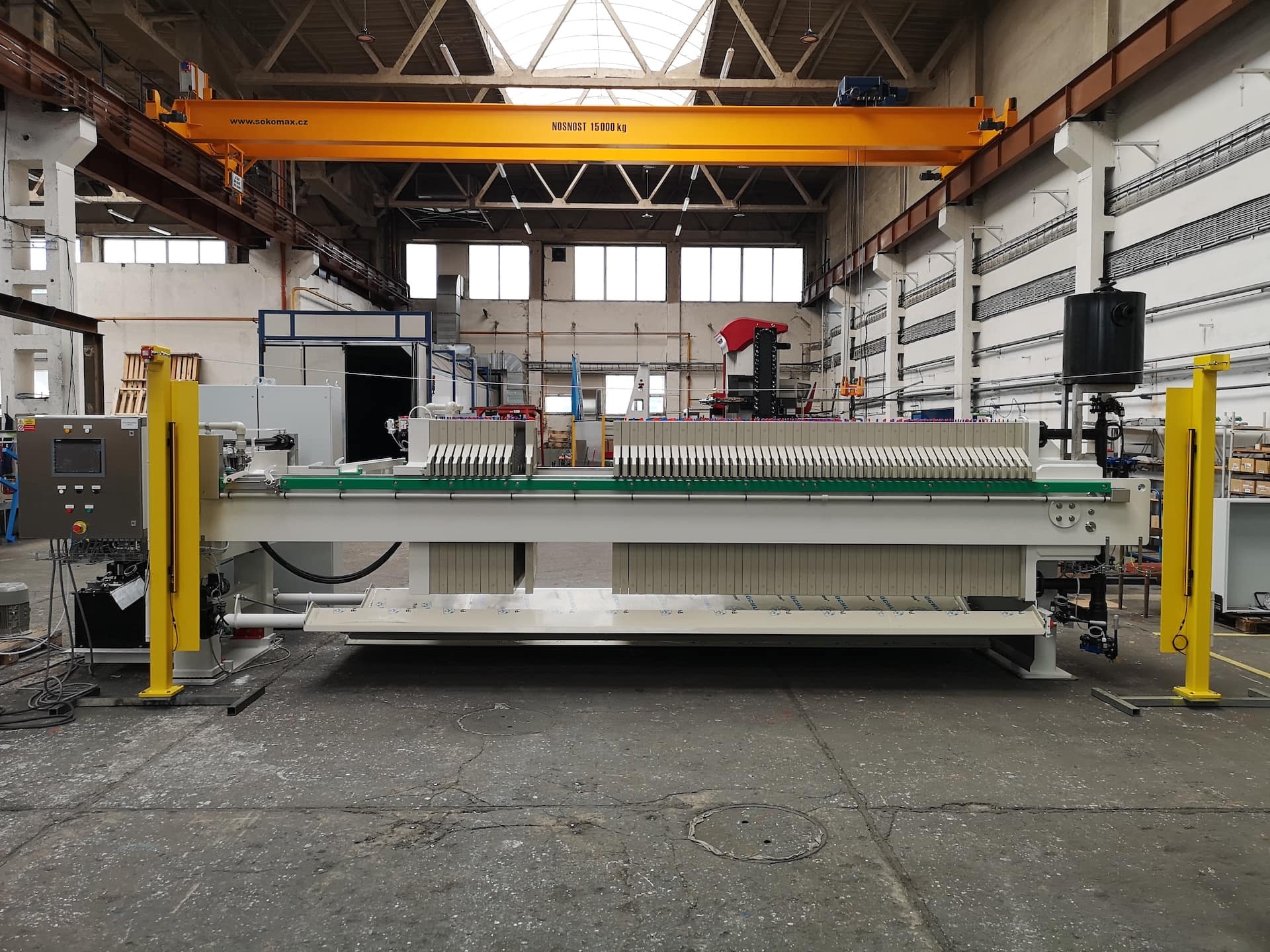

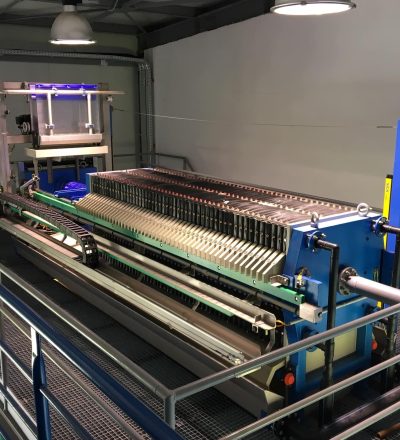

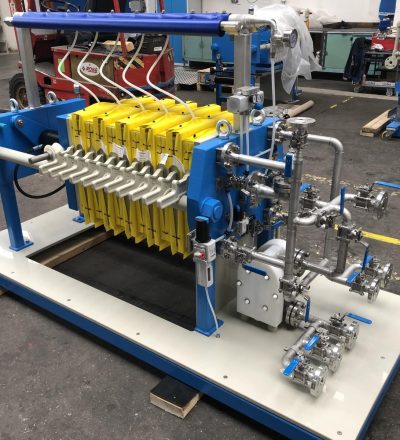

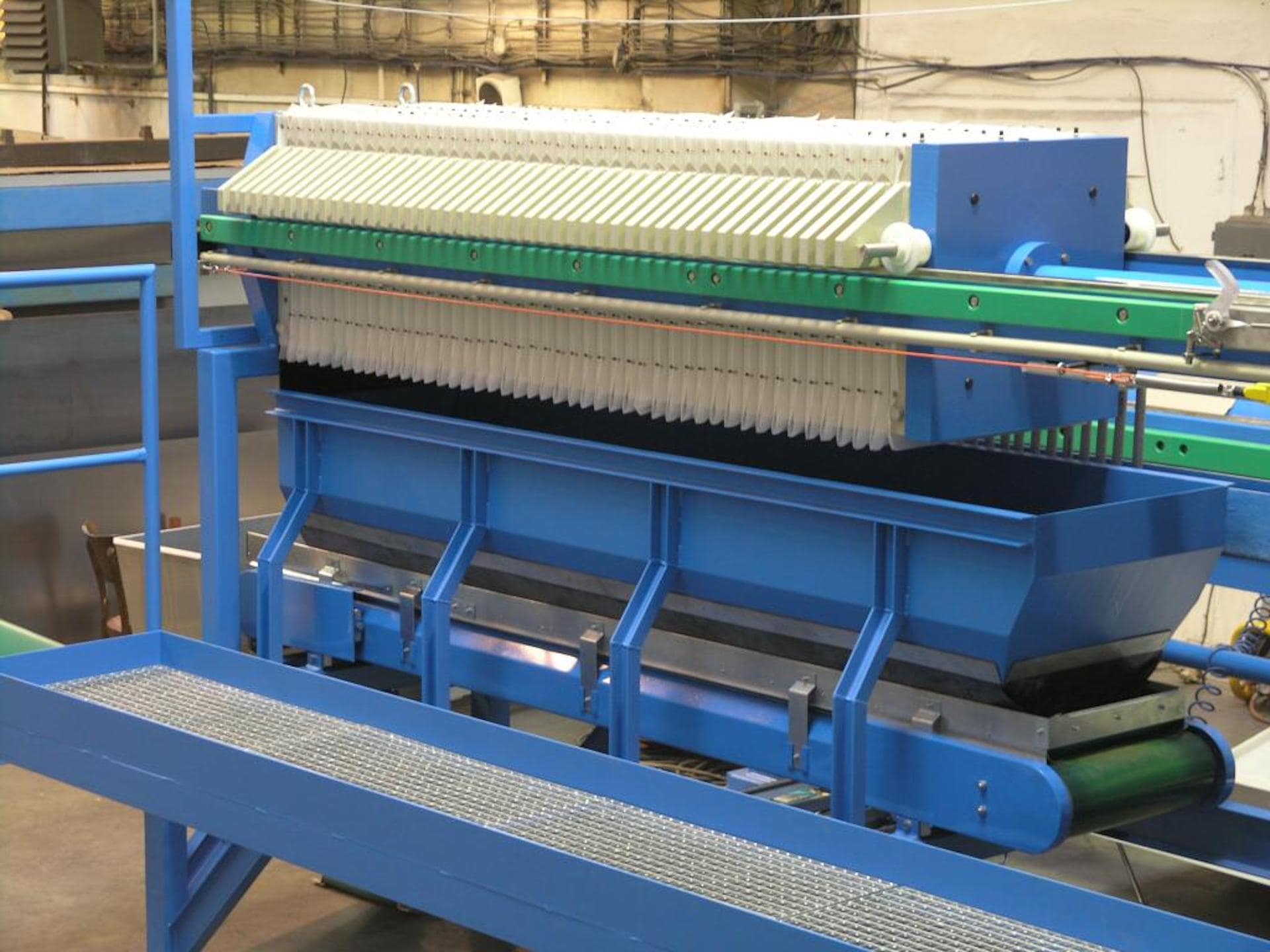

Filter presses with chamber plates

Filter presses with chamber plates belong to the most used types of pressure presses. The workspace consists of filter chambers made of detachable filter plates. The plates have a recess in the flat part with a drainage system. The total recess depth of both adjacent plates determines the thickness of the resulting filter cake, which ranges from 10 to 50 mm. The working pressure is up to 16 bar for the standard design and up to 30 bar for the special design.

Technical parameters

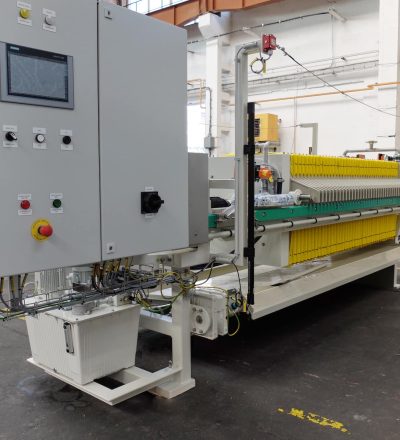

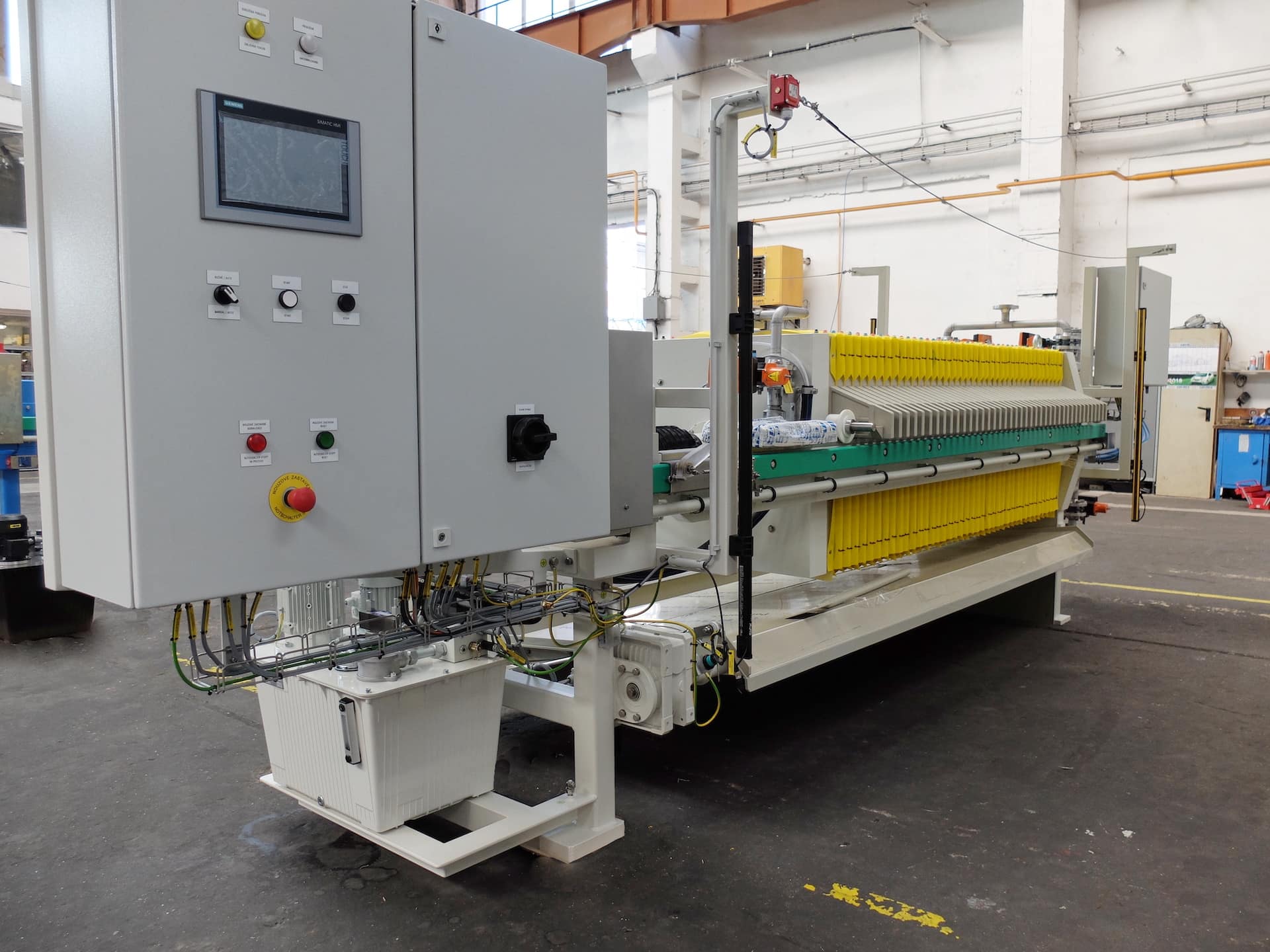

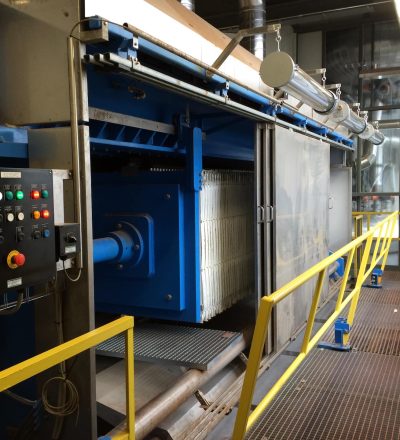

We produce ENVITES filter presses with open and closed filtrate discharge and with the possibility of manual or automatic closing and separation of the filter plates. We produce filter presses with a side bolt and with the upper suspension of the plates.

Plate size	Type	Volume	Filtration surface
mm	–	dm³	m²
250 × 250	with chamber plates	2–25	0,2–3
400 × 400	with chamber plates	10–130	1–12
470 × 470	with chamber plates / with membrane plates	35–190	3–18
500 x 500	with chamber plates	40–220	4–20
630 × 630	with chamber plates / with membrane plates	110–430	10–40
800 × 800	with chamber plates / with membrane plates	220–1,100	20–110
1,000 × 1,000	with chamber plates / with membrane plates	500–2,300	50–210
1,200 × 1,200	with chamber plates / with membrane plates	740–3,200	70–300
1,500 × 1,500	with chamber plates / with membrane plates	1,300–6,000	120–520
1,500 × 2,000	with chamber plates / with membrane plates	2,000–9,000	150–700

How is the implementation process?

Request

Write us an e-mail with a detailed request.

Price offer

We will find out more information about your request and prepare a price offer.

Order

Together we will agree on the order or conclude a contract.

Production

We will prepare project documentation and put the order into production.

Delivery of the order

We will deliver the order to you, install it, and put it into operation.

Write us

Get professional filter presses for wastewater purification. Send us an email with your request. We will provide you with expert advice, recommend suitable technologies, prepare a custom-made design, produce, deliver, and install the equipment for you. We are based in Brno, where we design and produce filter technologies. We deliver filter presses, sand filters, clarifiers, and sludge thickeners to the Czech Republic, Slovakia and Scandinavia, as well as the USA, the Balkans, and Africa.
